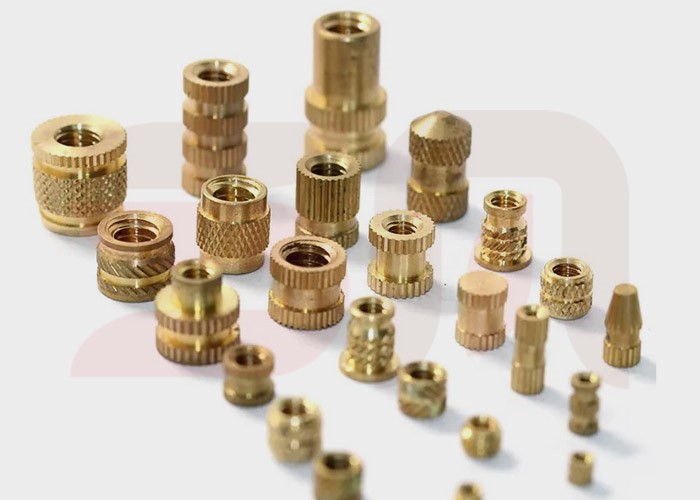

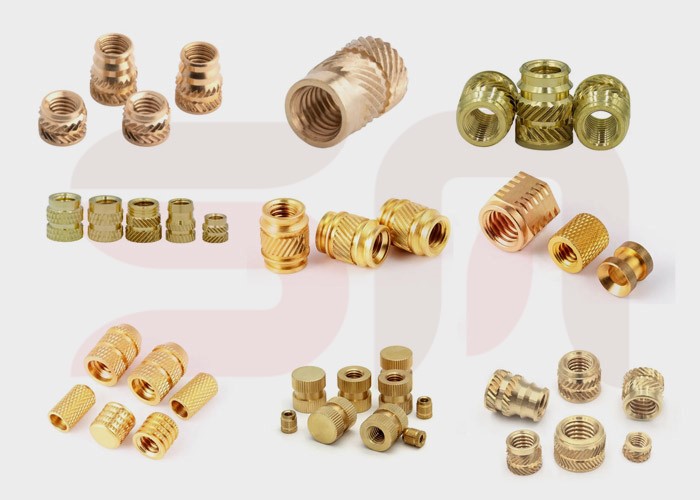

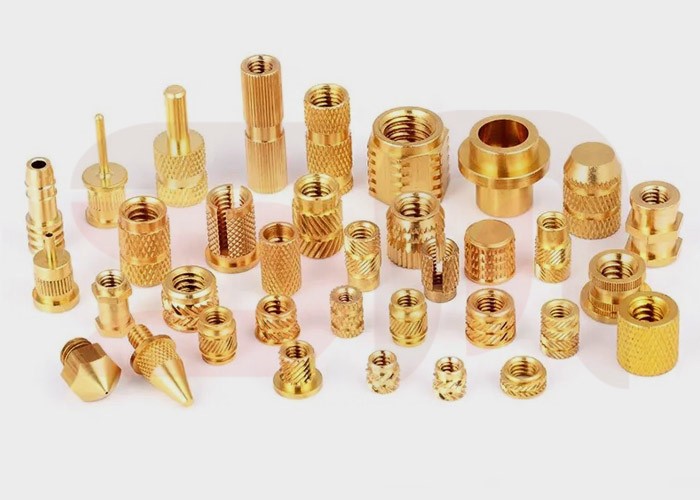

Moulding Inserts
The wide range of Brass Inserts include threaded molding inserts, ultrasonic molding inserts, knurled molding inserts, molding inserts for plastic, wood molding inserts and more. The range of standard and high quality molding inserts designed to molded into the plastic, wood or any molded components. The brass used in the manufacturing of these moulding inserts is of optimum quality that ensures high durability, tensile strength and resistance to corrosion. High temperature bearing capacity has also made these moulding inserts ideal for various industrial applications.
| Special Features : | » Threads as per International Go & Not Go Standards. » Deep Groove for maximum Pull Out Resistance. » Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts. » Knurling Available: » Diamond » Straight » Unidirectional » Both blind and through brass inserts are available with no minimum Qty |
| Also Available: | » Round Knurled Inserts » Hexagonal Inserts » Square Inserts |
| Material : | » Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade » Any Special Brass Material Composition as per customers requirement |
| Threads : | » ISO Metric (MM Threads) » BA, BSW (Inches), UNC, UNF or » Any as per custom design |
| Length / Size : | Begins from M2 or equivalent threads and up to any size as per custom design or requirement |
| Finish And Coating : | Natural, Nickle Plated, Tin Plated or any coating as per customer specification. |
